Replacement tank LRA 120L Mitsubishi L200 ML/MN Diesel 4WD

The replacement tank LRA is designed for the Mitsubishi L200 ML / MN diesel 4WD, in Single, Extra or Dual body style, from 2005 to 2014. With its capacity to 120 litersIt replaces the original tank to increase fuel range for travel, raids, tracks and travel in isolated areas.

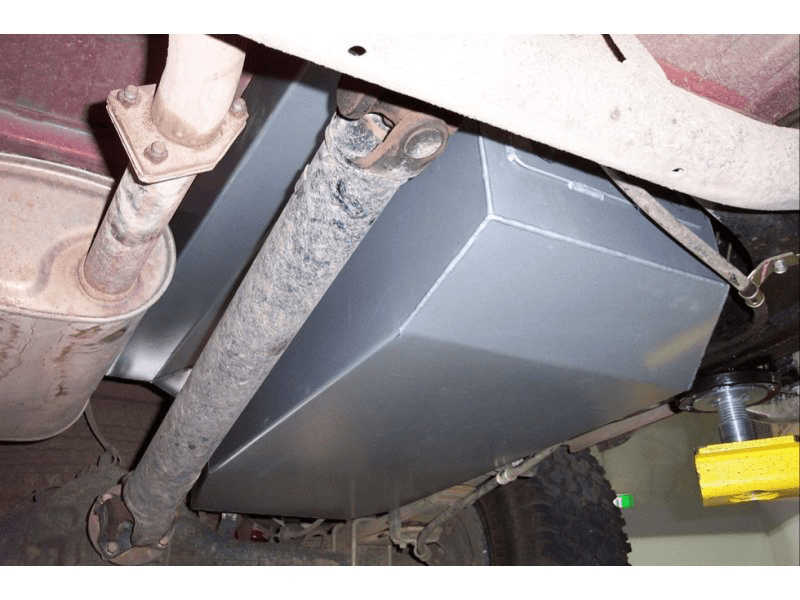

This tank is installed on the left side of the driveshaft, retaining the standard exhaust, original filler point, and spare tire. (Page number omitted) LRA It specifies that it is only suitable for vehicles without a factory-installed rear differential lock. The instructions indicate the removal of the standard tank, the temporary relocation of the driveshaft to the right side, the relocation of the handbrake cable bracket, the reuse of the original gauge/sampling assembly, the installation of an anti-rollover valve, the connection of the hoses, and the modification of the quick-fill hose.

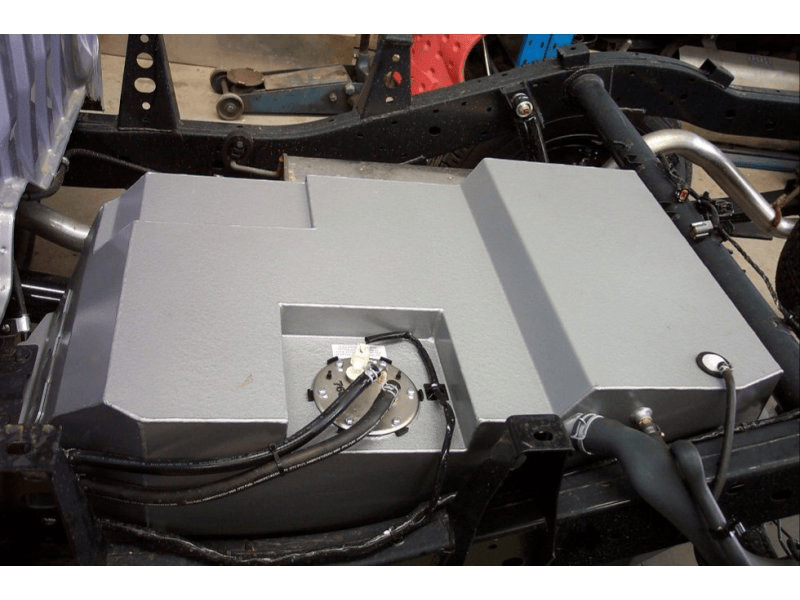

Since 1989, LONG RANGE AUTOMOTIVE designs and manufactures its tanks in Australia. Each model is developed for a specific vehicle application to optimize available volume while respecting the chassis's mechanical constraints. The tanks LRA They are made of 2mm T125CQ steel. They incorporate internal baffling to limit fuel movement, as well as an expansion chamber. Before being sold, they undergo pressure tests and several quality control checks. Tests are also carried out over dozens of kilometers of heavily degraded tracks. These tests verify the tank's resistance to vibrations, repeated twisting, impacts, and the stresses of prolonged off-road use.

Technical specifications:

- Type: Replacement tank
- Capacity: 120 liters
- Vehicle compatibility: Mitsubishi L200 ML / MN 2005 to 2014
- Compatible engine type: Diesel
- Bodywork: Single, Extra or Dual
- Transmission: 4WD
- Required configuration: Vehicle without factory-installed rear differential lock
- Tank replaced: Original tank
- Position: Left side of the drive shaft
- Exhaust: Standard
- Filling point: Standard
- Gauge: Original gauge/sampling assembly retained, float arm can be extended by 60 mm
- Spare wheel: Retained
- Estimated assembly time: 3 hours
- Made in Australia
