Explora LED headlight 4'' 9 LEDs 45W - VISION

Explora 4'' 9 LEDs 45W VISION X LED headlight. The VISION X Explora 4'' 45W LED headlight combines a 45W driving light and a customizable position light in a compact format.

LED lighting

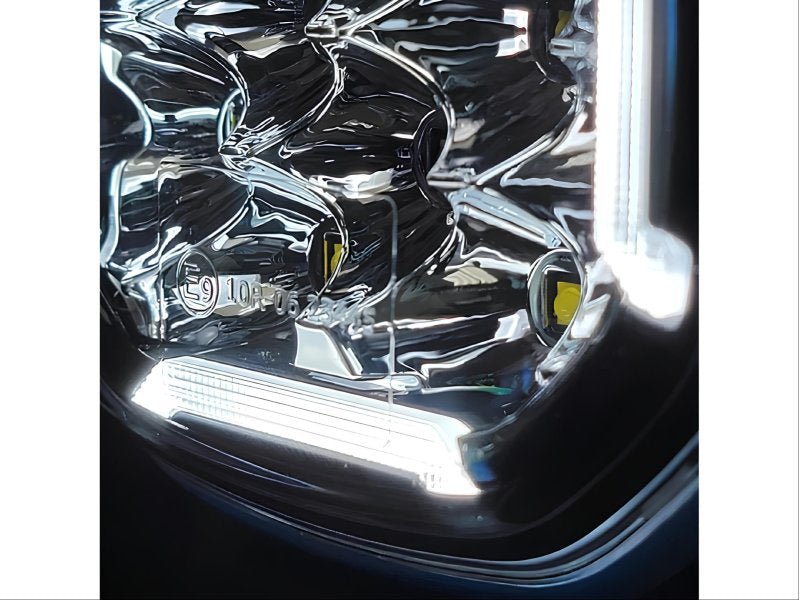

Its ultra-reflective honeycomb optics, combined with CREE XTE LEDs, deliver 3,295 gross lumens and can illuminate up to 182 m, with a claimed beam width of 28 m.

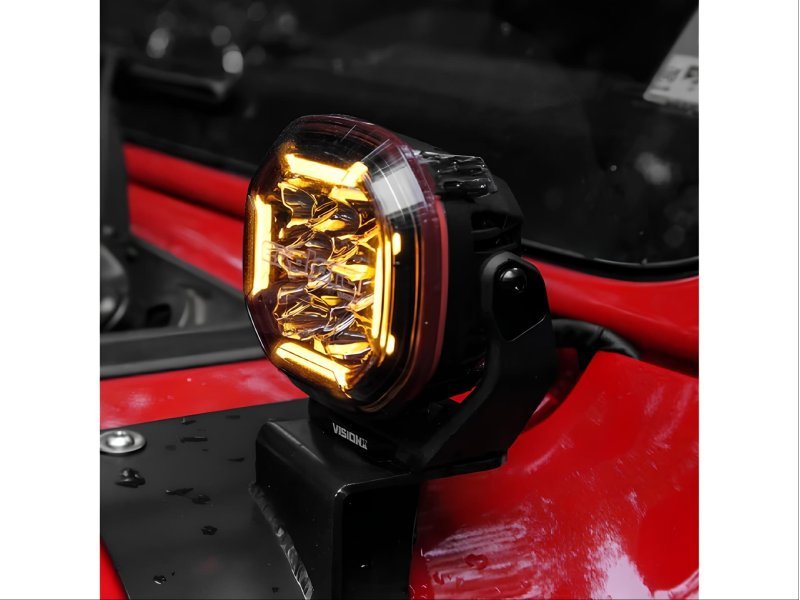

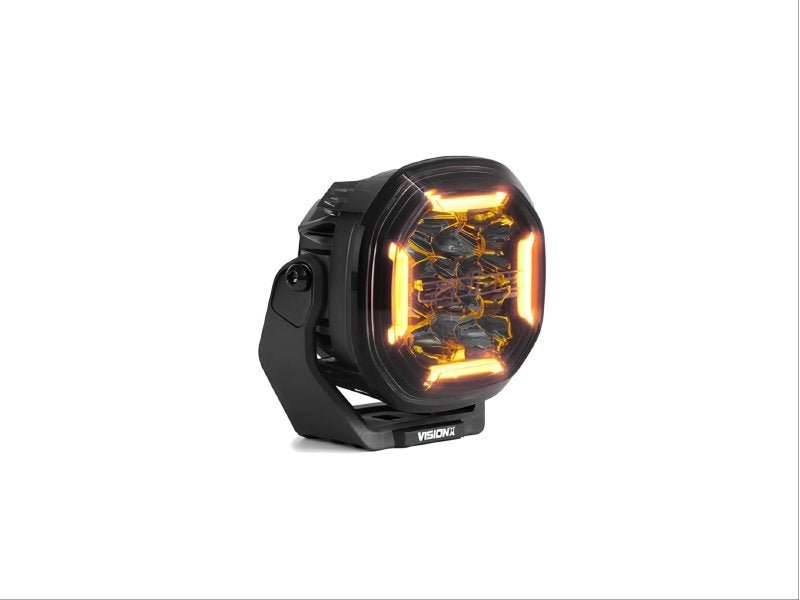

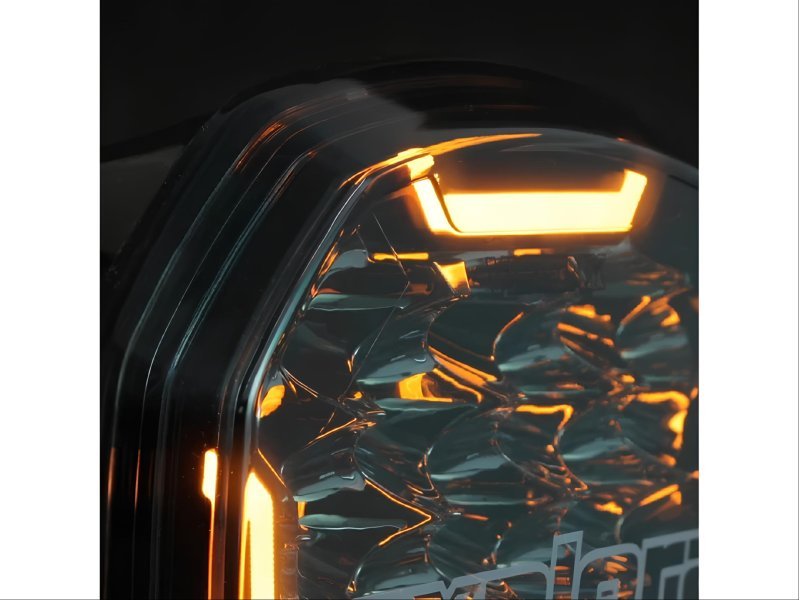

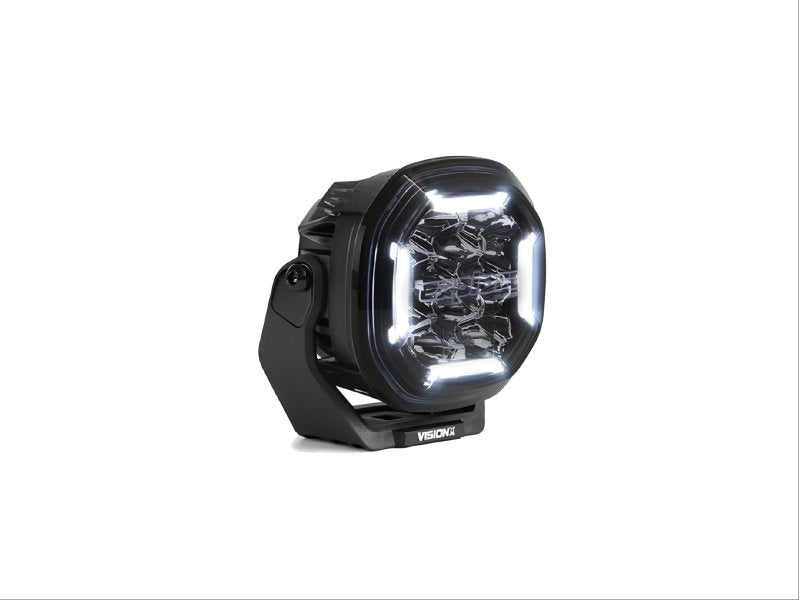

Its four-segment DRL can be used in white or orange.

Thanks to Switchback technology, the amber light takes priority when both colours are powered and can flash in synchronization with the vehicle's original turn signals.

The connection can be made using a trip wire or a universal switch, with a power supply between 11 and 32 V DC and a 3-pin DT connector.

A smoked lens is fitted to the original headlight.

Features

- Power: 45 W

- Gross luminous flux: 3,295 lm

- Range: up to 182 m

- LED: CREE XTE 5 W

- DRL: white/orange with switchback function

- Color temperature: 6000 K

- Tension: 11–32 V DC

- Connector: DT 3-pin

- Warranty: Limited lifetime

Its Switchback technology, integrated relay and range of up to 182 m facilitate its integration on a vehicle intended for night driving and off-road use.

Main features

Materials and construction

It can be replaced with different clip-on lenses, including clear or Selective Yellow, while colored trim rings allow the projector's appearance to be changed.

Dimensions and capacity

Its ultra-reflective honeycomb optics, combined with CREE XTE LEDs, deliver 3,295 gross lumens and can illuminate up to 182 m, with a claimed beam width of 28 m.

- Beam width: up to 28 m

Assembly and fixing

The electronic design incorporates an internal MOSFET, eliminating the need for an external relay.

Operation and use

The VISION X Explora 4&Prime 45W LED headlight combines a 45W driving light and a customizable position light in a compact format.

This function makes it possible to combine additional lighting and a light signature in the same projector.

Its IP68 / IP69K protection allows it to withstand immersion and high-pressure water jets.

- Protection: IP68 / IP69K

The VISION X Explora 4' Prime 45W LED headlight is a compact solution to complement the lighting of a 4x4 while benefiting from a customizable white or orange position light.

Items provided

- Lens supplied: smoke

Ideal for 4x4, Camping and off-road travel

Its Switchback technology, integrated relay and range of up to 182 m facilitate its integration on a vehicle intended for night driving and off-road use.

• Off-road travel

Technical specifications

Compatibility and important information

Check the compatibility of this product with your vehicle and configuration before ordering. Any information not specified by the supplier should be confirmed with [the relevant party/source]. Xperts4x4.

Installation

The electronic design incorporates an internal MOSFET, eliminating the need for an external relay.

Guarantee

- Warranty: Limited lifetime
